Thermal Master Thor002 Infrared Camera Review – Price breaker for technology freaks and semi-professional thermal imaging at a competitive price

1 - Introduction, Unboxing and Technical Specifications 2 - Functions and Menu Navigation 3 - Practical Use and Evaluation Software 4 - Summary and Conclusion

The Thermal Master Thor002 is an extremely attractively priced, portable thermal imaging camera that advertises features that you would otherwise expect to find on much more expensive devices. At a street price of around 360 euros, it is aimed at users who are looking for a stand-alone, robust thermal camera without having to sacrifice basic measurement accuracy, RGB image fusion or high sensor resolution. The device is therefore aimed at tech-savvy DIY enthusiasts, energy consultants, service and maintenance technicians and interested private users who want to carry out simple but meaningful thermographic investigations.

I initially approached this product with a certain amount of skepticism, as the price and technical promise didn’t seem to quite match up. However, a closer examination reveals that the Thor002 can do more than the data sheet suggests at first glance. If you are prepared to get to grips with the operation and the physical principles, you will be rewarded with surprisingly useful results. However, a solid understanding of typical measurement errors, emissivities, reflections and the behavior of surfaces in the infrared range is a prerequisite.

This is precisely why I am testing this device in more detail, because it is not enough to press a shutter button and produce colorful images. The camera requires you to know what you are measuring and where, and then how to interpret it. For anyone who would like to learn more about this, I refer you to my basic article on practical thermography. There I also explain the physical limitations of such devices so that you can better understand the results of the Thor002. I have linked the article again at the bottom of this page.

Scope of delivery and unboxing

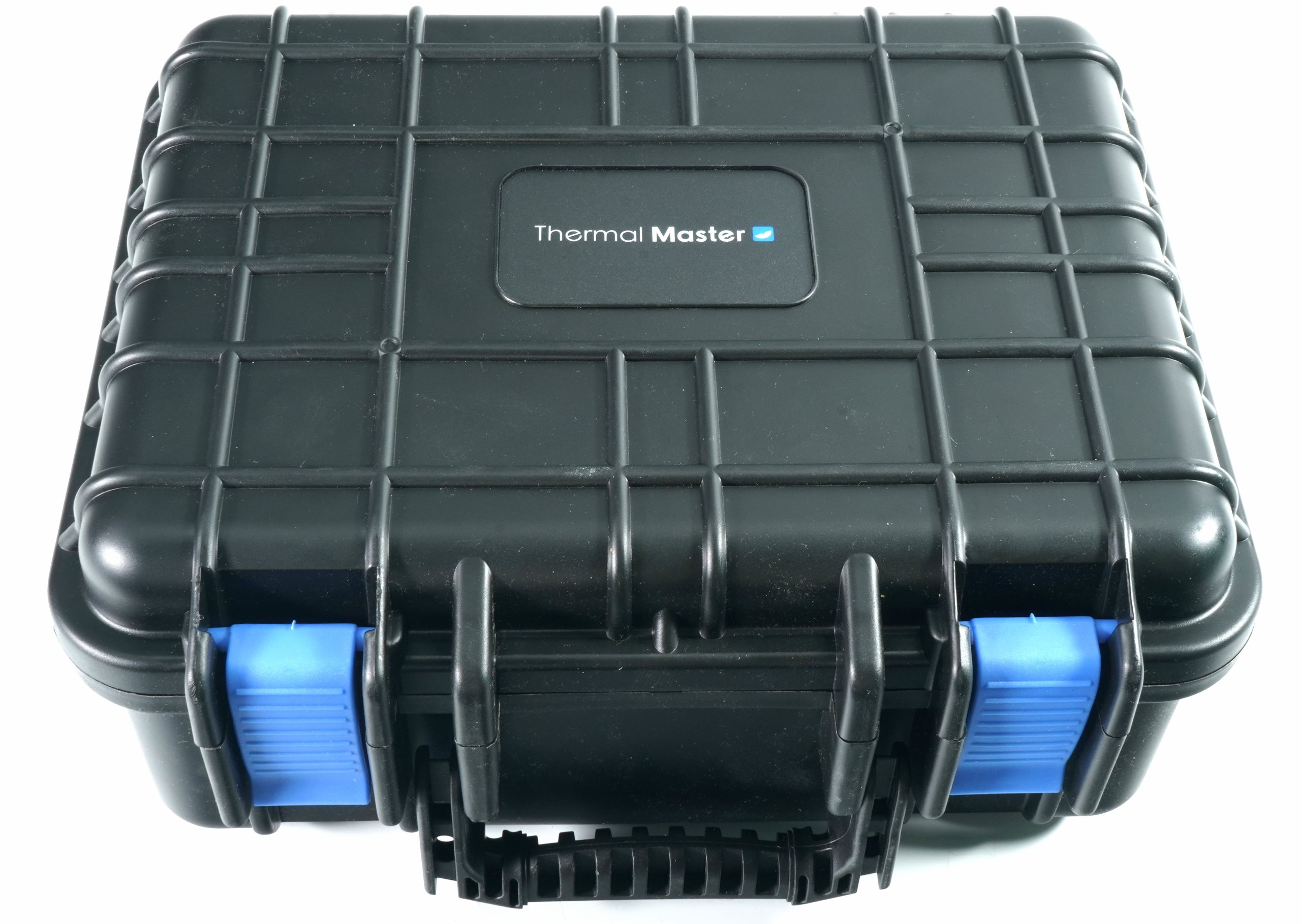

When opening the sturdy, screw-on hard case, it is immediately apparent that the Thermal Master Thor002 was not packaged as a toy. The transport case is solidly made, consists of impact-resistant plastic with an all-round seal and locks with two strong, blue plastic latches. The weight of the case including contents is around 1.4 kg, which is perfectly acceptable considering its size and protective function.

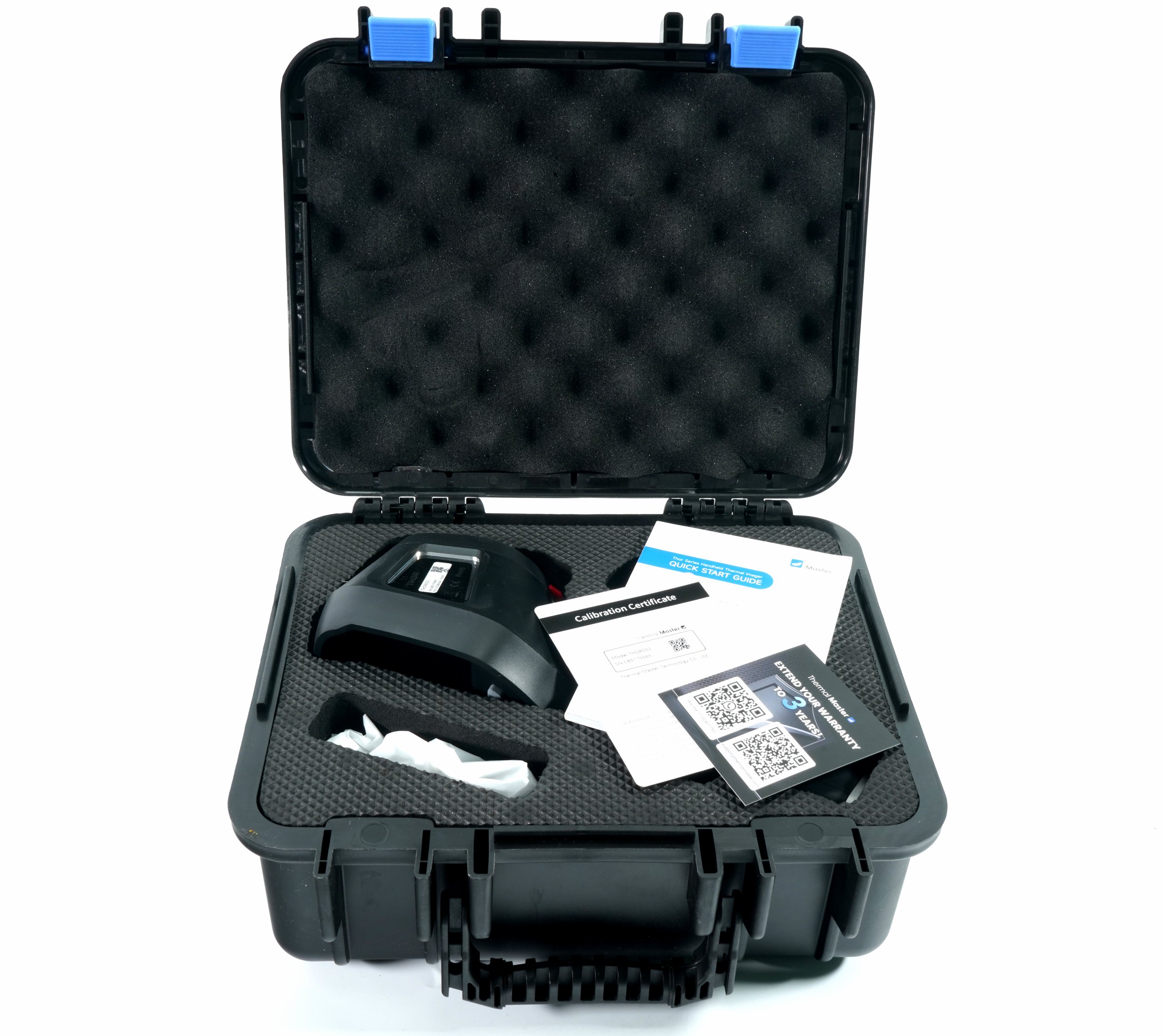

Inside, the camera is neatly nestled in a molded foam insert that offers sufficient protection against mechanical stress. In addition to the actual device, a calibration certificate, a printed Quick Start Guide, a USB-C charging cable and a protective cap for the lens are included. A cleaning cloth and a printed warranty card with QR code for online registration are also included. The packaging is functional and well thought out.

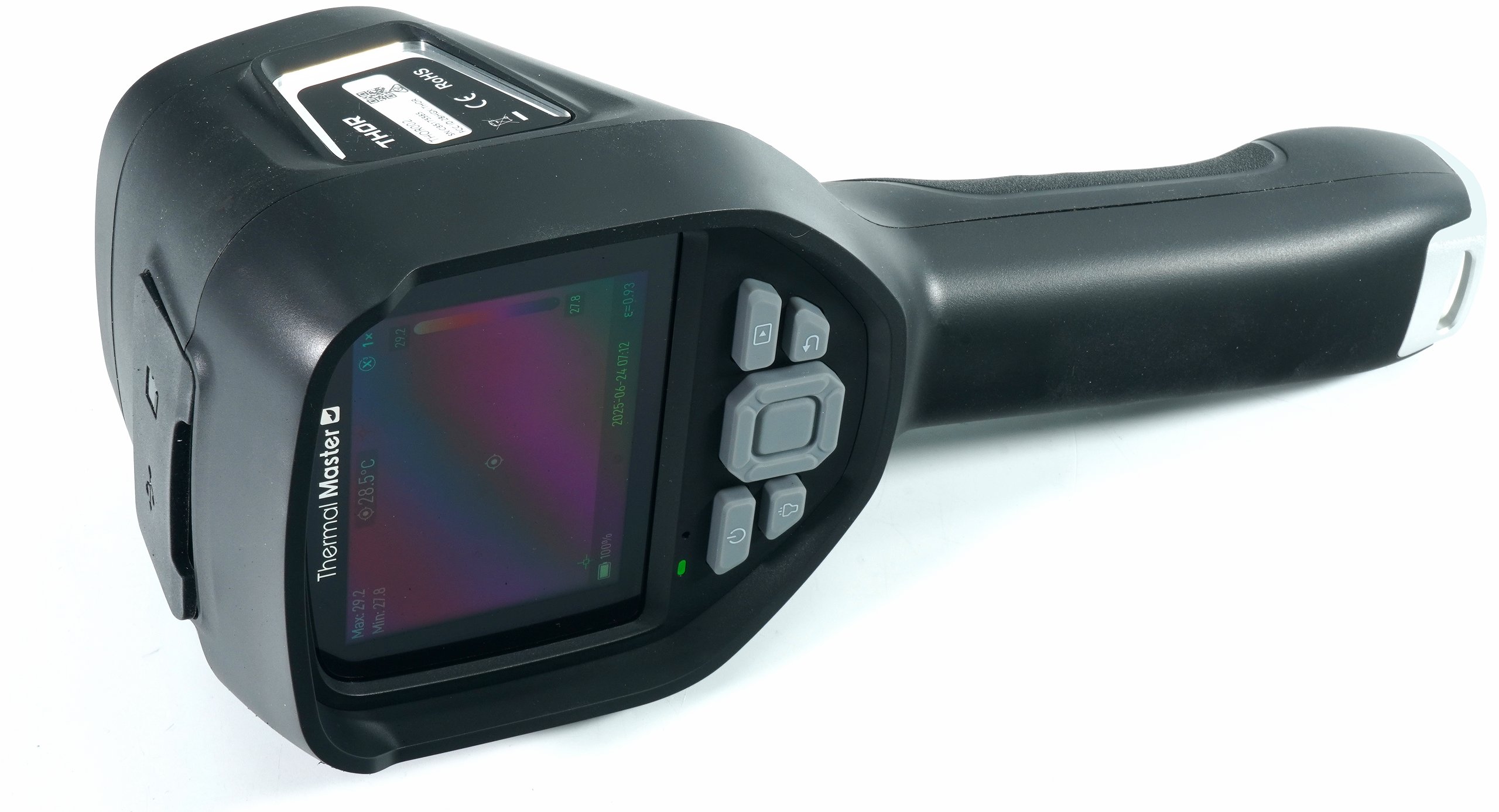

The device itself makes a robust, almost industrial impression. With a length of around 20 cm, a weight of around 375 g and a visible rubber coating on the handle, the Thor002 is comfortable to hold without being too heavy. The surface is mainly made of matt ABS plastic, which does not become slippery even after prolonged use. The push buttons next to the display are easy to reach and can also be operated with gloves.

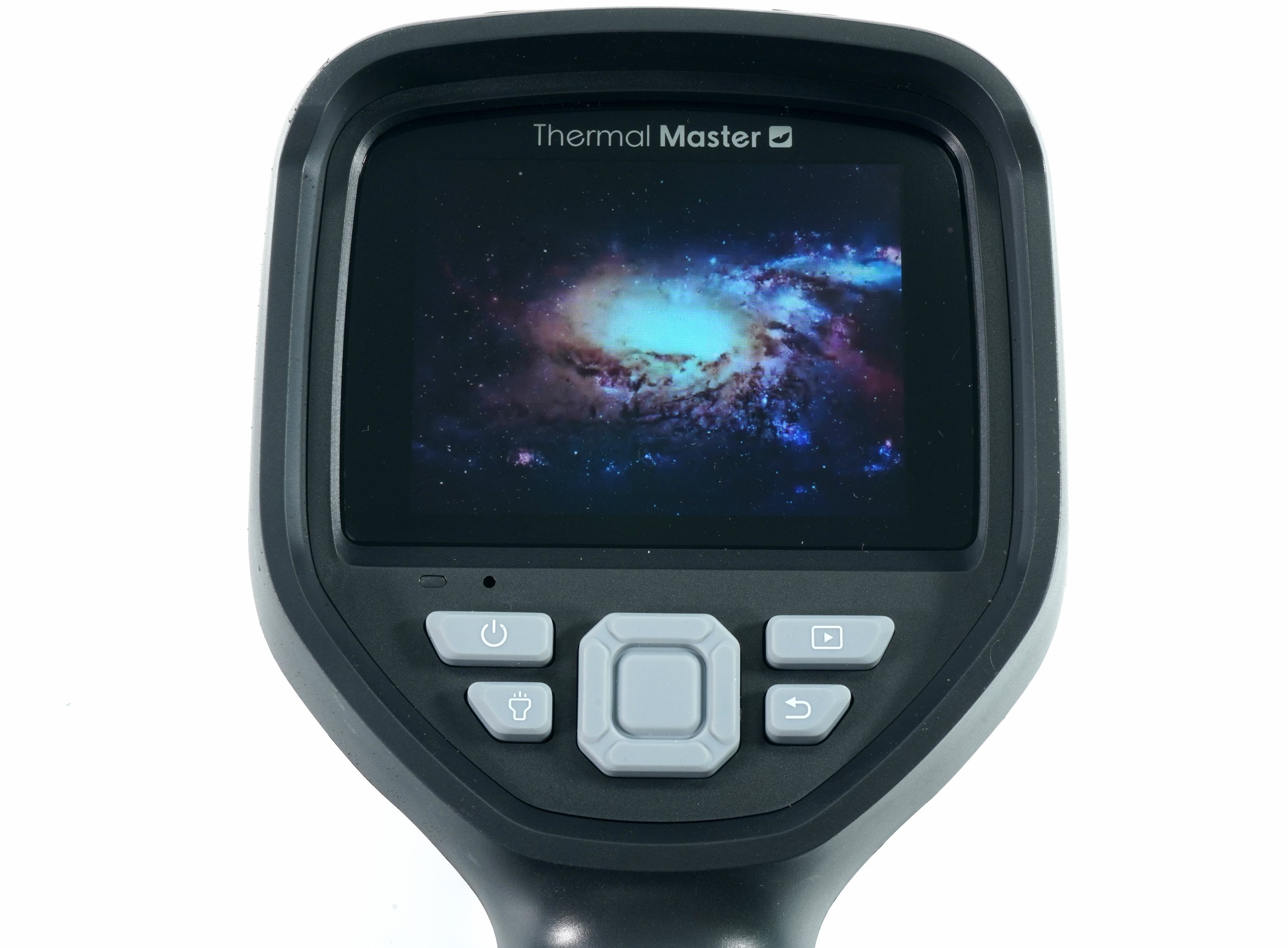

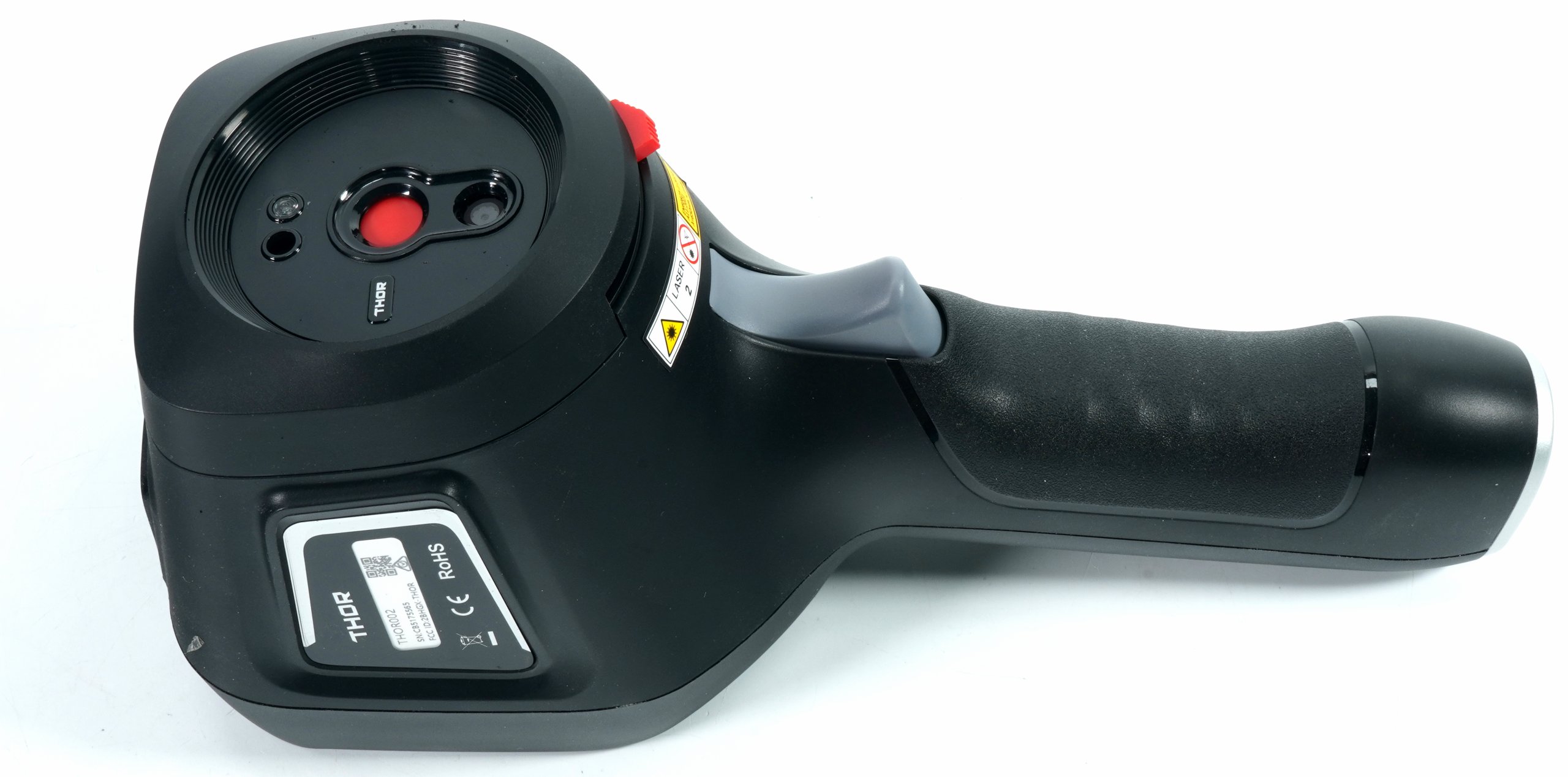

The 3.5-inch IPS display with a resolution of 640×480 pixels dominates the back and is covered with a protective film ex works. It shows clear menu navigation as soon as it is switched on and the display is surprisingly high-contrast. The visible front lens sits deep in the casing and is also protected from impact damage by a sturdy plastic frame. An integrated USB-C port on the side is used both for data transfer and for charging the 5000 mAh battery, which, according to the manufacturer, should provide up to six hours of operation.

It is clear from the first unpacking that the Thor002 is not a cheap product. The workmanship appears solid, all components fit tightly and the choice of accessories shows that the manufacturer did not simply want to cut costs. For a device in this price range, the initial impression is more than positive, at least if you know what you can expect in this class and are aware of the limitations of such systems. If you do, you will find a tool with surprising potential.

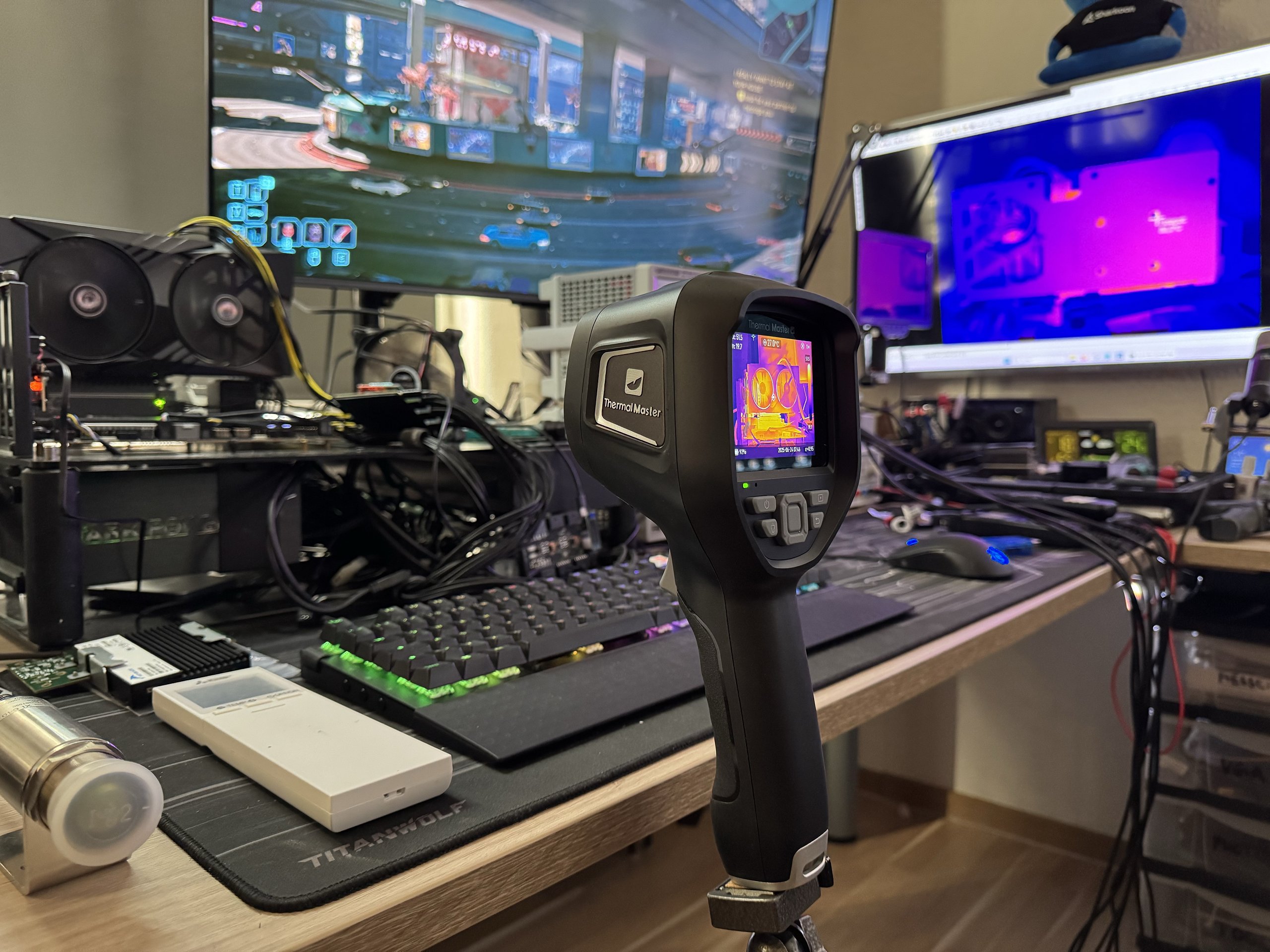

The Thermal Master Thor002 is not only designed as a portable handheld device, but can also be used as a stationary device if required. There is a standard ¼ inch thread on the underside, which is compatible with most photo tripods. This allows the camera to be mounted stably, which is particularly helpful for repeatable measurements, temperature observations over time or thermal documentation from a fixed perspective. Areas that are difficult to access, such as behind cladding or under ceilings, can also be better captured in this way.

The camera housing is designed in accordance with protection class IP54. This means that it is protected against dust in damaging quantities and can withstand splashing water from all directions. This design also allows the camera to be used in workshops, on construction sites or in damp environments such as basements or technical centers, as long as it is not exposed to direct water jets or heavy rain. The recessed buttons on the side, the recessed lens and the rubberized surfaces also help to minimize mechanical damage caused by knocks or a brief drop.

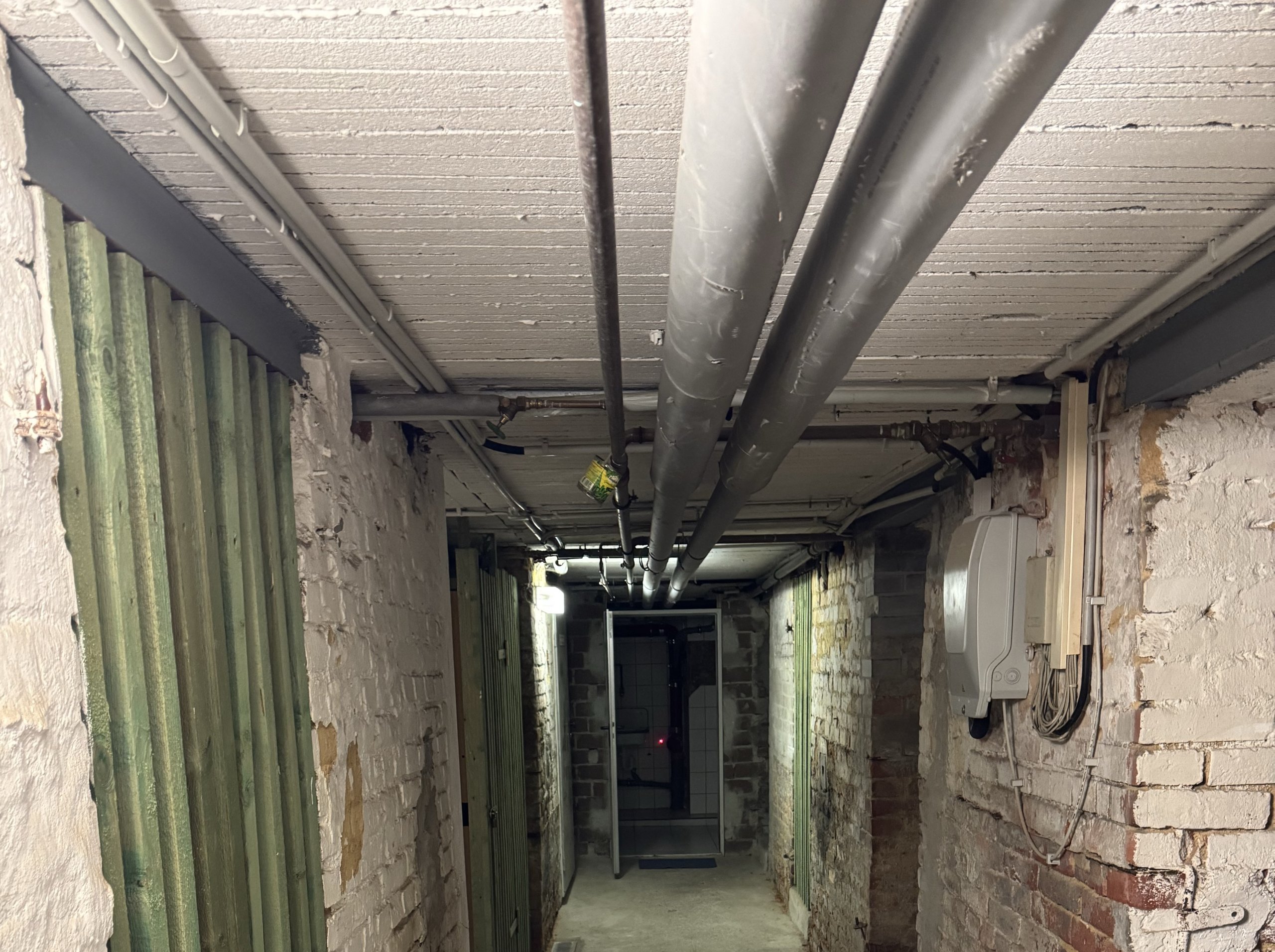

For working in confined or dark areas, an LED light is integrated on the front, which serves as a flashlight. This allows objects in the field of vision to be located even in poor lighting conditions. In addition, a laser dot can be activated to visually mark the target. This function is helpful when the IR image needs to be aligned with a real reference, for example when checking fuses, cable routes or heating valves. Find the laser point!

After a few weeks of intensive use, the camera has proven to be versatile and sufficiently robust in practical use. It is suitable for both mobile and stationary operation and covers a wide range of typical thermographic applications without the need for an external power supply or network connection.

Technical data and performance comparison

The following table compares the key technical data of the Thermal Master Thor002 with the significantly more expensive Fluke TiS55 . Both cameras have an identical IR resolution and cover the same temperature range, but differ significantly in terms of price and individual features. While the Fluke TiS55 scores particularly well in industrial environments with asset management and touch operation, the Thor002 offers many comparable core functions, including a voice memo function and tripod mount, at a fraction of the price. Where available, the technical data has been verified by the respective manual:
