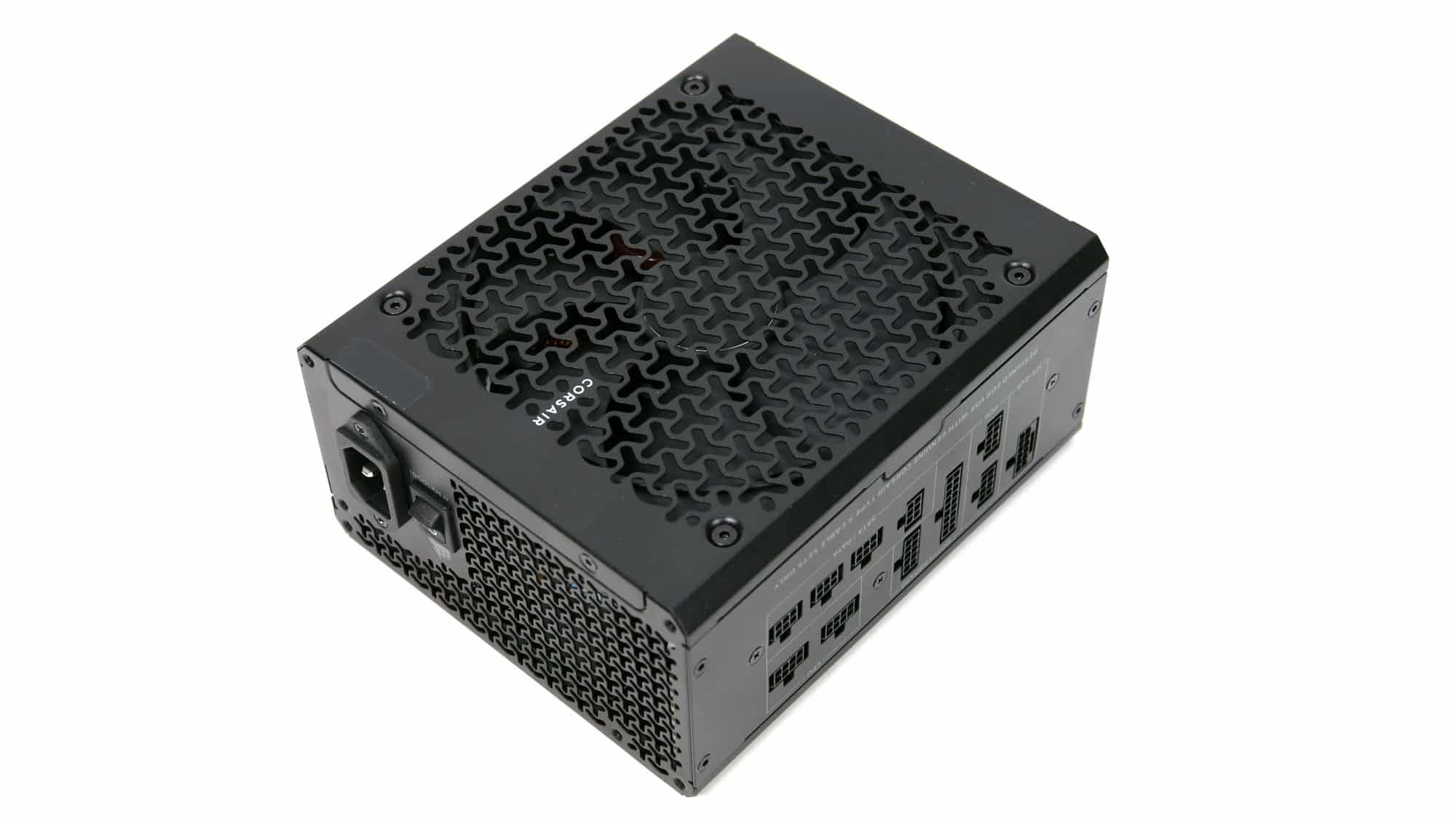

The Corsair HXi Shift series will exist in parallel with the HXi series. The main difference is the side-mounted modular connection panel, which is made possible by a different internal platform and allows the connection panel to be “shifted”. There’s also plenty of iCUE, but we’ll get to that in a moment.
Reason enough for me to once again let my friend Aris from Hardwarebusters have his say (and picture) on this on our site, as he has not only tested this power supply intensively, but has also officially certified it through his company Cybenetics. As it will certainly be of interest to you, I am happy to offer him the platform to share his findings with you here on a case-by-case basis. And don’t forget, his website and YouTube channel also offer real gems in the form of really well-founded reviews! The power supply tested today is of course also included in his article on the best ATX v3.x & PCIe 5.x power supplies.
The Corsair HX1000i Shift is (or will be) included in my article on the best ATX v3.x and PCIe 5.x power supplies. This is also the first time I’ve made extensive use of the reviewer’s guide provided, and Corsair explains everything very clearly in it. However, there is one crucial point that is not emphasized there: The HXi-Shift models do not have a -12V rail. This was a relic from the past, offered no benefit and reduced efficiency. Omitting it is therefore a sensible decision.
Important features:
– First SHIFT power supply with Cybenetics Platinum-certified efficiency
– First Corsair power supply with integrated iCUE-LINK system hub
– No need for a separate system hub in the case as it is integrated internally in the power supply
– No additional 6-pin PCIe power connector required
– The integrated hub corresponds to the previous system hub and supports up to 24 devices via two channels
Prices and availability
Here are the currently available retail prices in Germany and selected EU stores, as of 04.11.2025, Europe/Berlin. Prices are in euros, usually including VAT, availability depends on the retailer. Idealo and Geizhals each list several retailers, the cheapest prices are to be understood as ex-price and experience shows that they change over the course of the day, which is why the information is a snapshot. The Corsair store prices are list prices for the EU store and are suitable as a reference; according to the store, they include free shipping, but the actual delivery time depends on stock levels. Marketplace listings, such as PcComponentes, may include other sellers and shipping terms, which will affect the final cost.
| Model | Country/Region | Retailer | Price | Availability | Source |
|---|---|---|---|---|---|
| HX1000i SHIFT | Germany | Idealo, best price overview | from 253,29 € | variable by provider | (idealo.de) |
| HX1000i SHIFT | EU-wide | Corsair Store EU | 264,90 € | immediately available according to store | (CORSAIR) |
| HX1000i SHIFT | The Netherlands | Megekko | 264,90 € | in stock according to store overview | (Megekko) |
| HX1200i SHIFT | Germany | Geizhals DE, best price overview | from 280,00 € | variable by provider | (Geizhals.de) |
| HX1200i SHIFT | EU-wide | Corsair Store EU | 299,90 € | immediately available according to store | (CORSAIR) |
| HX1200i SHIFT | Spain | PcComponentes, Marketplace offer | 306,38 € | available according to page | (pccomponentes.com) |
| HX1500i SHIFT | Germany | Idealo, best price overview | from 320,99 € | variable by provider | (idealo.de) |
| HX1500i SHIFT | EU-wide | Corsair Store EU | 339,90 € | immediately available according to store | (CORSAIR) |
| HX1500i SHIFT | The Netherlands | Megekko | 339,90 € | in stock according to store | (Megekko) |
Differences between HXi SHIFT and HXi:
– HXi Shift has side-mounted connections
– HXi Shift has an integrated iCUE-LINK system hub
– HXi Shift has a native 12V 2×6 connector, the HX1500i SHIFT even has two connectors
– HXi uses standard Type 4 connectors and Type 4 to 12V 2×6 cables
– HXi Shift has marked outlines around the connectors for better differentiation of connector types
– HX1500i Shift offers two 12V-2×6 connectors for multi-GPU systems
– HXi Shift uses flexible Type 5 cables, HXi still uses Type 4 cables
Note: It is recommended to read the guide to the best ATX v3.1 power supplies before buying.
Official test reports
Here is the desired table in a compact and formal format:
Technical data
| Attribute | Specification |
|---|---|
| Manufacturer (OEM) | CWT |
| Maximum output power | 1000 W |
| Efficiency (Cybenetics) | 115 V: Platinum (90.161 %), 230 V: Platinum (91.832 %) |
| Noise level (Cybenetics) | 115 V: A (16.65 dB(A)), 230 V: A (16.70 dB(A)) |
| Standards | ATX v3.1, EPS 2.92 |
| Operating temperature (full load) | 0 – 50 °C |
| Support for ALPM | Yes |
| Combined power 12 V | 1000 W |
| 12 V rails | 1 |
| Power 5 V 3.3 V | 150 W |
| Power 5 VSB | 17,5 W |
| Cooling | 140 mm FDB fan (NR140HP) |
| Semi-passive operation | Yes |
| Cable management | Fully modular |
| High current connections | 2x EPS (2 cables), 1x 12 2 pin (600 W), 4x PCIe 6 2 pin (3 cables) |
| Peripheral connections | 8x SATA (2 cables), 8x Molex 4-pin (2 cables) |
| ATX cable length | 610 mm |
| EPS cable length | 650 mm |
| 12 2-pin PCIe cable length | 650 mm |
| 6 2-pin PCIe cable length | 600 mm |
| Distance SATA/Molex connector | 100 mm |
| In-cable capacitors | None |
| Dimensions (W x H x D) | 150 x 85 x 180 mm |
| Weight | 1.99 kg |
| Warranty period | 10 years |
| RRP (net) | 340 US dollars |
Power Specifications
| Rail | 3.3V | 5V | 12V | 5VSB | ||
| Max. Power | Amps | 25 | 25 | 83.3 | 3.5 | |
| Watts | 150 | 999.6 | 17.5 | |||
| Total Max. Power (W) | 1000 | |||||
Corsair HXi SHIFT Series HX1000i SHIFT 1000W ATX 3.1 (CP-9020265-EU)
| Lagernd im Außenlager, Lieferung 2-3 WerktageStand: 23.12.25 07:25 | 244,83 €*Stand: 23.12.25 07:25 | |
| Sofort verfügbar, Lieferzeit max. 1-2 Werktage | 244,84 €*Stand: 23.12.25 07:24 | |
| Auf Lager, 1 Werktag | 244,88 €*Stand: 23.12.25 06:42 |
Corsair HXi SHIFT Series HX1200i SHIFT 1200W ATX 3.1 (CP-9020267-EU)
| Bestellt, versandfertig in 10-16 Werktagen | 299,90 €*Stand: 23.12.25 07:27 | |
| Noch nicht verfügbar, Nicht vorrätig | 299,90 €*Stand: 23.12.25 07:22 | |
| Noch nicht verfügbar, Nicht vorrätig | 299,90 €*Stand: 23.12.25 07:05 |
Corsair HXi SHIFT Series HX1500i SHIFT 1500W ATX 3.1 (CP-9020269-EU)
| Auf Lager | 339,90 €*Stand: 23.12.25 07:27 | |
| Noch nicht verfügbar, Nicht vorrätig | 339,90 €*Stand: 23.12.25 07:22 | |
| Noch nicht verfügbar, Nicht vorrätig | 339,90 €*Stand: 23.12.25 07:05 |
- 1 - Introduction, Prices and Technical Data
- 2 - Unboxing, Cables and iCUE
- 3 - Protection and EMI
- 4 - Teardown: Topology, components and craftmanship
- 5 - Load Regulation, Ripple Suppression, Transient Resonse
- 6 - Hold-Up Time, Timings, Inrush-Current
- 7 - Average Efficiency and PF
- 8 - Operating noise and fan
- 9 - Summary and conclusion
